In the field of industrial machinery, hydraulic cylinders play a fundamental role in delivering high force and precise linear motion. From construction equipment handling heavy loads to automated manufacturing systems requiring controlled movement, these components are indispensable across a wide range of applications. This document outlines the function, design, operation, selection criteria, and maintenance of hydraulic cylinders.
Function and Operating Principle
A hydraulic cylinder is a mechanical actuator that converts hydraulic energy, derived from pressurized fluid, into linear force and motion. When hydraulic fluid is introduced into the cylinder, pressure acts on the piston surface, generating movement of the piston rod. This enables the cylinder to lift, push, pull, or hold significant loads. Compared to pneumatic or electric actuators, hydraulic cylinders are distinguished by their ability to produce very high force within a compact form factor, making them especially suitable for heavy-duty and space-constrained applications.
Construction and Components

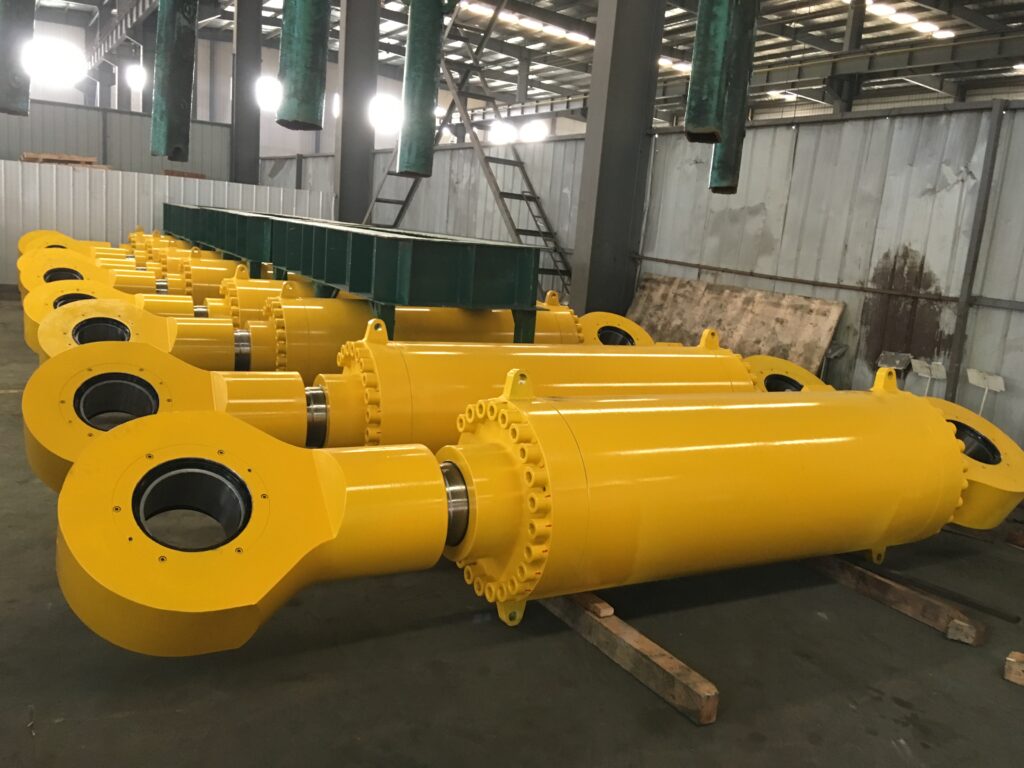

A standard hydraulic cylinder consists of several essential parts:
- Cylinder barrel – houses the pressurized fluid.
- Cylinder heads – seal both ends of the barrel, with ports allowing fluid to enter and exit.
- Piston – fits tightly within the barrel, dividing it into two chambers.
- Piston rod – attached to the piston, extending through one head to connect with the external load.
- Seals – prevent internal and external leakage, maintaining pressure and efficiency.
- Buffer devices – decelerate piston movement near the stroke end, minimizing impact and wear.
- Exhaust valves – release trapped air that could otherwise cause irregular or jerky operation.
The durability and efficiency of the cylinder depend heavily on the quality of the sealing system and the condition of the piston rod surface.
Operating Principle
Hydraulic cylinders operate according to Pascal’s Principle, which states that pressure applied to a confined fluid is transmitted equally in all directions. When fluid is directed into one chamber, pressure displaces the piston, while fluid in the opposite chamber returns to the reservoir. By regulating fluid flow and pressure, operators can precisely control cylinder force, speed, and position.
This principle underpins their widespread use in applications such as:
- Excavators – actuating arms and buckets.
- Injection molding machines – clamping molds with high force.
- Agricultural equipment – adjusting implements such as plows and harvesters.
Selection Criteria
Selecting an appropriate hydraulic cylinder requires consideration of several parameters:
- Required force – determined by system pressure and piston area (Force = Pressure × Area).
- Stroke length – the distance the rod must travel.
- Retracted length – space requirements when the cylinder is fully closed.
- Operating environment – factors such as exposure to dust, moisture, or corrosive conditions.
- Material and seal selection – stainless steel and reinforced seals are recommended for harsh or marine environments.
- Customization options – mounting configurations, port arrangements, and special coatings to ensure compatibility with existing systems.
Maintenance
Proper maintenance is critical to sustaining hydraulic cylinder performance and service life. Recommended practices include:
- Inspecting for leaks, typically caused by worn seals.
- Maintaining clean hydraulic fluid to prevent abrasion and seal damage.
- Monitoring piston rod condition for dents or corrosion, which may compromise seals.
- Following scheduled inspection intervals to prevent unplanned downtime.
Future Developments
Advances in hydraulic cylinder technology are incorporating integrated sensors for real-time monitoring of parameters such as pressure, temperature, and rod position. These enable predictive maintenance and improved system control. Additionally, manufacturers are emphasizing sustainability, with designs aimed at improving energy efficiency, reducing fluid consumption, and utilizing environmentally friendly materials.
Conclusion
Hydraulic cylinders remain a cornerstone of industrial motion systems due to their capacity to generate high force with precise control. By selecting the correct specifications, ensuring appropriate materials and seals for the environment, and implementing consistent maintenance, operators can maximize performance and reliability. Ongoing innovations in smart technology and sustainable design will further extend the relevance of hydraulic cylinders in modern industry.
